Help setting up XDMoD 10.0 Dashboard integrated in OOD 2.0.28 and Keyclock(SAML) Single Sign On Authentication

Get Help
, ,
1

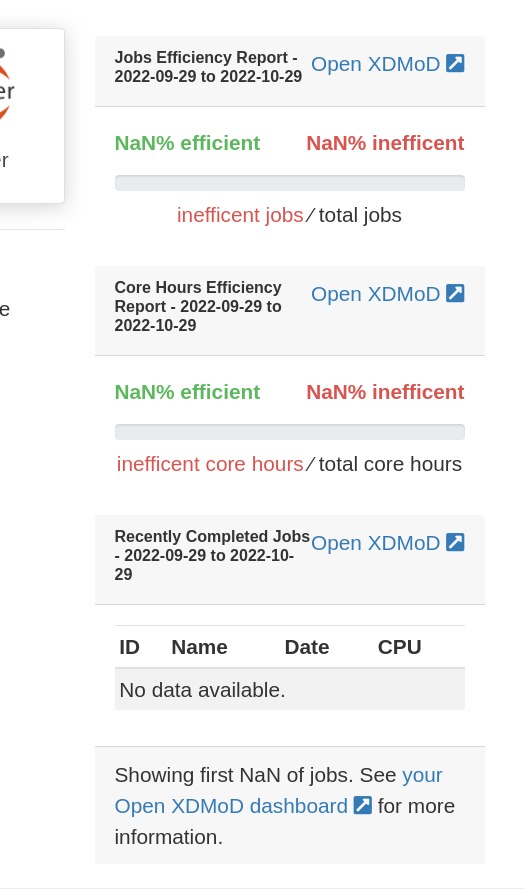

Could please help me with the integration of xdmod with OOD? I followed all the procedures, but something is missing that I’m missing. On my OOD dashboard it shows NaN.

dashboard_xdmod-ood
dashboard_xdmod-ood525×893 66.1 KB

It looks like a login problem, but I still don’t understand how to solve it. My OOD uses oidc with keycloak.

response
response904×170 42.7 KB

If my understanding is correct, I first need to configure SAML2 on Keycloak in the same realm for XDMoD client. A guide like we have on OOD would be interesting 2. Configure Keycloak — Open OnDemand 2.0.20 documentation

Or if you only need to get the data from the SAML 2.0 Identity Provider Metadata link from the keycloak realm settings.


This subject was addressed in this post: Help setting up XDMoD and Keyclock(SAML) However I have some doubts that precede the one discussed here about the basic keycloak settings and " how to do step by step for beginner." In other words, how do I configure Keycloak for xdmod using SAML2 as I configured Keycloak for OOD using OIDC.

I would like some guidance on this, please.

2

I’m trying to move forward. Now it looks like I’m almost there. I get this message when I access the url for authentication test:

[root@xdmod ~]# curl https://xdmod.domain.org/simplesaml/module.php/core/authenticate.php?as=default-sp
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
  <head>
    <meta http-equiv="content-type" content="text/html; charset=utf-8">
    <meta http-equiv="refresh" content="0;URL='https://keycloak.saml.org/realms/oondemand/protocol/saml?SAMLRequest=lVJdaxsxEPwrh97vdFZyDha2wY0pNaStid0%2B9KXI0l4s0MdVu2rdf1%2F5HNP0xdCnhdmdmZ1l56i8G%2BQq0zE8w48MSNXJu4BybCxYTkFGhRZlUB5Qkpa71ccnKZpWDilS1NGxN5TbDIUIiWwMrNqsF%2Bx7K%2B7buwP0004%2FmK476H56MEo8TAvadWp2D3fdxMxmfcuqr5CwMBesCBU6YoZNQFKBCtQKUU8mdSv2Qkgxk133jVXrksYGRSPrSDSg5Dxao5sh6zrZ2EBuYnrhCZTzyGMMBrwKhl%2BT8XMkVq2uaz%2FGgNlD2kH6aTV8eX76K3wyPpoGTkqTugqj9YODswgvzeygGY7DKMrxUkWtNI6ogV5lRzUOrNq%2B%2Br%2Bzwdjwcvuoh8sQyg%2F7%2Fbbeft7t2XJ%2B1pbjkdLyf6LP%2BVvm%2FPIen4rnZr2Nzurf1fuYvKLbK50Ra%2Bp%2BHJWUVEALgcolnYu%2FHospwYJRysD48mL57xMu%2FwA%3D&amp;RelayState=https%3A%2F%2Fxdmod.domain.org%2Fsimplesaml%2Fmodule.php%2Fcore%2Fauthenticate.php%3Fas%3Ddefault-sp&amp;SigAlg=http%3A%2F%2Fwww.w3.org%2F2001%2F04%2Fxmldsig-more%23rsa-sha256&amp;Signature=jJCEsIrOTD9iwhii7o%2F4ntJrzFUryJ%2BzLtYVGvkEU6YyDvOlk0in0T4ovCuv80Lz0YIPFdpDk4jW10vfFimM58shT1bFOXuh39XrO40jGCQbMm%2FX7QIrIc0C1uV7kMER45%2BfhnCBz7HNrrESxIPwYgrMYMADZNWhZ9YwaZvblmbRpT5ory5AfFuZRglknykajMz2c5pS8nP2HWKoaaDi%2B6CXF%2FFaSwWCbZJlXOFu3e3XJ5PG%2FWawJFawAiKJN2ogG0n%2BtgxGun%2FSGkqeMlDa6j7WNBWQUnsGOAhgvWVGovSZYcRUkBGEfvHzoTKPbAExxXq%2BxmkfeodfeicXnz4BNA%3D%3D'">
    <title>Redirect</title>
  </head>
  <body>
    <h1>Redirect</h1>
      <p>You were redirected to: <a id="redirlink" href="https://keycloak.saml.org/realms/oondemand/protocol/saml?SAMLRequest=lVJdaxsxEPwrh97vdFZyDha2wY0pNaStid0%2B9KXI0l4s0MdVu2rdf1%2F5HNP0xdCnhdmdmZ1l56i8G%2BQq0zE8w48MSNXJu4BybCxYTkFGhRZlUB5Qkpa71ccnKZpWDilS1NGxN5TbDIUIiWwMrNqsF%2Bx7K%2B7buwP0004%2FmK476H56MEo8TAvadWp2D3fdxMxmfcuqr5CwMBesCBU6YoZNQFKBCtQKUU8mdSv2Qkgxk133jVXrksYGRSPrSDSg5Dxao5sh6zrZ2EBuYnrhCZTzyGMMBrwKhl%2BT8XMkVq2uaz%2FGgNlD2kH6aTV8eX76K3wyPpoGTkqTugqj9YODswgvzeygGY7DKMrxUkWtNI6ogV5lRzUOrNq%2B%2Br%2Bzwdjwcvuoh8sQyg%2F7%2Fbbeft7t2XJ%2B1pbjkdLyf6LP%2BVvm%2FPIen4rnZr2Nzurf1fuYvKLbK50Ra%2Bp%2BHJWUVEALgcolnYu%2FHospwYJRysD48mL57xMu%2FwA%3D&amp;RelayState=https%3A%2F%2Fxdmod.domain.org%2Fsimplesaml%2Fmodule.php%2Fcore%2Fauthenticate.php%3Fas%3Ddefault-sp&amp;SigAlg=http%3A%2F%2Fwww.w3.org%2F2001%2F04%2Fxmldsig-more%23rsa-sha256&amp;Signature=jJCEsIrOTD9iwhii7o%2F4ntJrzFUryJ%2BzLtYVGvkEU6YyDvOlk0in0T4ovCuv80Lz0YIPFdpDk4jW10vfFimM58shT1bFOXuh39XrO40jGCQbMm%2FX7QIrIc0C1uV7kMER45%2BfhnCBz7HNrrESxIPwYgrMYMADZNWhZ9YwaZvblmbRpT5ory5AfFuZRglknykajMz2c5pS8nP2HWKoaaDi%2B6CXF%2FFaSwWCbZJlXOFu3e3XJ5PG%2FWawJFawAiKJN2ogG0n%2BtgxGun%2FSGkqeMlDa6j7WNBWQUnsGOAhgvWVGovSZYcRUkBGEfvHzoTKPbAExxXq%2BxmkfeodfeicXnz4BNA%3D%3D">https://keycloak.saml.org/realms/oondemand/protocol/saml?SAMLRequest=lVJdaxsxEPwrh97vdFZyDha2wY0pNaStid0%2B9KXI0l4s0MdVu2rdf1%2F5HNP0xdCnhdmdmZ1l56i8G%2BQq0zE8w48MSNXJu4BybCxYTkFGhRZlUB5Qkpa71ccnKZpWDilS1NGxN5TbDIUIiWwMrNqsF%2Bx7K%2B7buwP0004%2FmK476H56MEo8TAvadWp2D3fdxMxmfcuqr5CwMBesCBU6YoZNQFKBCtQKUU8mdSv2Qkgxk133jVXrksYGRSPrSDSg5Dxao5sh6zrZ2EBuYnrhCZTzyGMMBrwKhl%2BT8XMkVq2uaz%2FGgNlD2kH6aTV8eX76K3wyPpoGTkqTugqj9YODswgvzeygGY7DKMrxUkWtNI6ogV5lRzUOrNq%2B%2Br%2Bzwdjwcvuoh8sQyg%2F7%2Fbbeft7t2XJ%2B1pbjkdLyf6LP%2BVvm%2FPIen4rnZr2Nzurf1fuYvKLbK50Ra%2Bp%2BHJWUVEALgcolnYu%2FHospwYJRysD48mL57xMu%2FwA%3D&amp;RelayState=https%3A%2F%2Fxdmod.domain.org%2Fsimplesaml%2Fmodule.php%2Fcore%2Fauthenticate.php%3Fas%3Ddefault-sp&amp;SigAlg=http%3A%2F%2Fwww.w3.org%2F2001%2F04%2Fxmldsig-more%23rsa-sha256&amp;Signature=jJCEsIrOTD9iwhii7o%2F4ntJrzFUryJ%2BzLtYVGvkEU6YyDvOlk0in0T4ovCuv80Lz0YIPFdpDk4jW10vfFimM58shT1bFOXuh39XrO40jGCQbMm%2FX7QIrIc0C1uV7kMER45%2BfhnCBz7HNrrESxIPwYgrMYMADZNWhZ9YwaZvblmbRpT5ory5AfFuZRglknykajMz2c5pS8nP2HWKoaaDi%2B6CXF%2FFaSwWCbZJlXOFu3e3XJ5PG%2FWawJFawAiKJN2ogG0n%2BtgxGun%2FSGkqeMlDa6j7WNBWQUnsGOAhgvWVGovSZYcRUkBGEfvHzoTKPbAExxXq%2BxmkfeodfeicXnz4BNA%3D%3D</a>
        <script type="text/javascript">document.getElementById("redirlink").focus();</script>
      </p>
  </body>
3

Hi sorry for the delay in the response.

It would appear from here that all you need on the XDMoD side is CORS settings. On the KeyCloak side you need to set frame-ancestors.
https://osc.github.io/ood-documentation/latest/customization.html#xdmod-integration-beta

@tdockendorf for XDMoD and OOD integration do they both need to be a part of the same realm?

4

I believe both XDMOD and OOD clients in Keycloak must be in same Realm in order for SSO to work. I’ve never tried doing it any other way so I can’t speak from experience.

5

In:
/etc/xdmod/portal_settings.ini

[cors]
domains = "https://ondemand.domain, https://keycloak.domain/"

In:
/etc/xdmod/simplesamlphp/config/authsources.php

<?php

$config = array(

    'default-sp' => array(
        'saml:SP',

        'entityID' => 'https://keycloak.domain/realms/oondemand',

        'idp' => 'https://keycloak.domain/realms/oondemand/protocol/saml/descriptor',

        'privatekey' => '/etc/xdmod/simplesamlphp/cert/xdmod.key',
        'certificate' => '/etc/xdmod/simplesamlphp/cert/xdmod.crt',

        'discoURL' => null,

        'signature.algorithm' => 'http://www.w3.org/2001/04/xmldsig-more#rsa-sha256',

        'authproc' => array(
            40 => array(
              'class' => 'core:AttributeMap',
              'urn:oid:0.9.2342.19200300.100.1.1' => 'username',
              'urn:oid:1.2.840.113549.1.9.1' => 'email_address',
              'urn:oid:2.5.4.42' => 'first_name',
              'urn:oid:2.5.4.4' => 'last_name'
            )
        )
    ),

    'admin' => array(
        'core:AdminPassword',
    ),

);

In:
/etc/xdmod/simplesamlphp/config/config.php

*'secretsalt' => 'mumm000u0u2muamu200u22uauu20mu2a' # LC_CTYPE=C tr -c -d 'aamu02' </dev/urandom | dd bs=32 count=1 2>/dev/null;echo
...
'auth.adminpassword' => 'cGeQbpkyVSJoqisVCVvep4WpCztZYxZmkwUR8MTnRUqrgqRPch92Sw==' # /usr/share/xdmod/vendor/simplesamlphp/simplesamlphp/bin/pwgen.php
...
'technicalcontact_email' => 'luvres@hotmail.com',
...
  'metadata.sources' => array(
    array('type' => 'flatfile', 'directory' => '/etc/xdmod/simplesamlphp/metadata/'),
  ),

If I’m on the right path, this part of the /etc/xdmod/simplesamlphp/metadata/saml20-idp-remote.php file generation is missing

image955×610 58.7 KB

6

Looks like you have to os here. o-o-n-demand. @jpwhite4 may know more.

7

At https://xdmod.domain/simplesaml/module.php/core/frontpage_federation.php you have the options:

XML to SimpleSAMLphp metadata converter
thought about converting the XML from https://keycloak.domain/realms/oondemand/protocol/saml/descriptor
in
Show metadata is generated an In SAML 2.0 Metadata XML format and a converted text that says:
In SimpleSAMLphp flat file format - use this if you are using a SimpleSAMLphp entity on the other side

I’ve been going through the settings quickly and many attempts…I still don’t understand what’s missing.

8

Yes, they are in the same realm called oondemand
The OOD client is called oondemand (same name as the realm) and the XDMoD client is called xdmod.domain

9

You get saml20-idp-remote.php from Keycloak. That is the curl commands in the post you saw here: Help setting up XDMoD and Keyclock(SAML) - #3 by tdockendorf. The URL might be slightly different on newer versions of Keycloak. For Keycloak 17+ it will be https://<keycloak server>/realms/<realm>/protocol/saml/descriptor. You can also get it by viewing the available protocols on Realm page inside Keycloak web UI. I believe you pass that descriptor information into simplsamlphp to generate the PHP file you need. I think it’s the metadata converter link.

10

When I generate the saml20-idp-remote.php file with XML to SimpleSAMLphp metadata convert getting the XML content at https://oidc.puc-rio.eu.org/realms/oondemand/protocol/saml/descriptor I have two conditions:

In authsources.php

  1. When 'idp' => 'https://keycloak.domain/realms/oondemand',

    image1836×590 210 KB

  2. When 'idp' => 'https://keycloak.domain/realms/oondemand/protocol/saml/descriptor',

    image1039×898 97.9 KB

11

It’s quite complicated to implement this solution. I find it strange and I’m wondering if the settings have changed for the new versions of the tools. I use Keycloak 18.0.2, Open XDMoD 10.0 and Open OnDemand 2.0.28

12

The idp value is not the descriptor path, it’s the SAML EntityID so it’s https://<keycloak server>/realms/<realm>. The entityID is autogenerated by Keycloak so you can’t change it which is why the format is always the same. Before Keycloak 17 it was a little different but still same idea. The descriptor URL is how you generate the SAML metadata but that’s just for populating the saml20-idp-remote.php.

The Client you create in Keycloak for XDMOD must have the name that matches the entityID in authsources.php. So if the entityID is xdmod.domain then that must be the name of the Client in Keycloak otherwise the SAML assertions won’t match anything in Keycloak.

13

My client on keycloak

image815×847 55.2 KB

My file authsources.php

<?php

$config = array(

    'default-sp' => array(
        'saml:SP',

        'entityID' => 'xdmod.exacta.eu.org',
        'idp' => 'https://oidc.puc-rio.eu.org/realms/oondemand',

        'privatekey' => '/etc/xdmod/simplesamlphp/cert/xdmod.key',
        'certificate' => '/etc/xdmod/simplesamlphp/cert/xdmod.crt',

        'discoURL' => null,

        'signature.algorithm' => 'http://www.w3.org/2001/04/xmldsig-more#rsa-sha256',

        'authproc' => array(
            40 => array(
              'class' => 'core:AttributeMap',
              'urn:oid:0.9.2342.19200300.100.1.1' => 'username',
              'urn:oid:1.2.840.113549.1.9.1' => 'email_address',
              'urn:oid:2.5.4.42' => 'first_name',
              'urn:oid:2.5.4.4' => 'last_name'
            )
        )
    ),

    'admin' => array(
        'core:AdminPassword',
    ),

);

Page to generate saml20-idp-remote.php

image951×706 66.1 KB

Sorry for all this work, but I’m really freaking out about this!

14

This is when I generate the XML contained in
https://oidc.puc-rio.eu.org/realms/oondemand/protocol/saml/descriptor

image951×705 65 KB

image951×705 135 KB

image951×776 120 KB

And my saml20-idp-remote.php

15

So I disabled Client Signature Required and now I am redirected to the login screen as expected.


But now I get Failed to process response after login

image1841×857 133 KB

16

Have you verified that XDMOD logins with Keycloak are working outside OnDemand? Just going into XDMOD and trying to login. It’s not clear from screenshots what you’re attempting to log into. Also the screenshots don’t show all the configurations for Keycloak for the XDMOD client. It’s a lot easier to see API dumps.

Example:

# /opt/keycloak/bin/kcadm.sh get clients -r <REALM> -q clientId=<XDMOD CLIENTID> --no-config --server http://localhost:8080/ --realm master --user admin --password <OMIT>

Some important things I see in our config:

"clientId" : "<MUST MATCH entityID on XDMOD side>",
"webOrigins" : [ "https://<XDMOD HOST>" ],
"redirectUris" : [ "https://<XDMOD HOST>/simplesaml/module.php/saml/sp/saml2-acs.php/default-sp" ],
  "attributes" : {
    "saml_assertion_consumer_url_post" : "https://<XDMOD HOST>/simplesaml/module.php/saml/sp/saml2-acs.php/default-sp",
    "saml_single_logout_service_url_redirect" : "https://<XDMOD HOST>/simplesaml/module.php/saml/sp/saml2-logout.php/default-sp",
  },
  "defaultClientScopes" : [ "osc-saml-clients" ],

Also need to ensure you have the proper scopes otherwise XDMOD’s SAML can’t get things like username and email.

This is assined to osc-saml-clients from above.

{
  "id" : "osc-saml-clients",
  "name" : "osc-saml-clients",
  "protocol" : "saml",
  "attributes" : {
    "display.on.consent.screen" : "true"
  },
  "protocolMappers" : [ {
    "id" : "fe623cbe-1519-5fce-b043-a23f8ee50fe2",
    "name" : "X500 surname",
    "protocol" : "saml",
    "protocolMapper" : "saml-user-property-mapper",
    "consentRequired" : false,
    "config" : {
      "attribute.nameformat" : "URI Reference",
      "user.attribute" : "lastName",
      "friendly.name" : "surname",
      "attribute.name" : "urn:oid:2.5.4.4"
    }
  }, {
    "id" : "ef9766fd-9b1a-5ef5-b73f-9f88bf472e22",
    "name" : "X500 email",
    "protocol" : "saml",
    "protocolMapper" : "saml-user-property-mapper",
    "consentRequired" : false,
    "config" : {
      "attribute.nameformat" : "URI Reference",
      "user.attribute" : "email",
      "friendly.name" : "email",
      "attribute.name" : "urn:oid:1.2.840.113549.1.9.1"
    }
  }, {
    "id" : "197e693a-927d-5e66-8d90-f4ae7864c69e",
    "name" : "X500 givenName",
    "protocol" : "saml",
    "protocolMapper" : "saml-user-property-mapper",
    "consentRequired" : false,
    "config" : {
      "attribute.nameformat" : "URI Reference",
      "user.attribute" : "firstName",
      "friendly.name" : "givenName",
      "attribute.name" : "urn:oid:2.5.4.42"
    }
  }, {
    "id" : "a1c39d71-82d8-5a7a-a002-f1726a33f4dd",
    "name" : "username",
    "protocol" : "saml",
    "protocolMapper" : "saml-user-property-mapper",
    "consentRequired" : false,
    "config" : {
      "attribute.nameformat" : "URI Reference",
      "user.attribute" : "username",
      "friendly.name" : "userid",
      "attribute.name" : "urn:oid:0.9.2342.19200300.100.1.1"
    }
  }, {
    "id" : "b3ca3cd4-20a3-42af-a056-0002543c1004",
    "name" : "role list",
    "protocol" : "saml",
    "protocolMapper" : "saml-role-list-mapper",
    "consentRequired" : false,
    "config" : {
      "single" : "false",
      "attribute.nameformat" : "Basic",
      "attribute.name" : "Role"
    }
  } ]
}
17

/opt/keycloak/bin/kcadm.sh get clients -r oondemand -q clientId=xdmod.exacta.eu.org --no-config --server http://localhost:8080/ --realm master --user admin --password OMIT

[ {
  "id" : "08d22822-b1c7-4005-b23c-6748e17c263a",
  "clientId" : "xdmod.exacta.eu.org",
  "name" : "Open XDMoD",
  "rootUrl" : "",
  "adminUrl" : "",
  "surrogateAuthRequired" : false,
  "enabled" : true,
  "alwaysDisplayInConsole" : false,
  "clientAuthenticatorType" : "client-secret",
  "redirectUris" : [ "https://xdmod.exacta.eu.org/simplesaml/module.php/saml/sp/saml2-acs.php/default-sp" ],
  "webOrigins" : [ "https://xdmod.exacta.eu.org" ],
  "notBefore" : 0,
  "bearerOnly" : false,
  "consentRequired" : false,
  "standardFlowEnabled" : true,
  "implicitFlowEnabled" : false,
  "directAccessGrantsEnabled" : false,
  "serviceAccountsEnabled" : false,
  "publicClient" : false,
  "frontchannelLogout" : true,
  "protocol" : "saml",
  "attributes" : {
    "saml.multivalued.roles" : "false",
    "saml.force.post.binding" : "true",
    "frontchannel.logout.session.required" : "false",
    "oauth2.device.authorization.grant.enabled" : "false",
    "backchannel.logout.revoke.offline.tokens" : "false",
    "saml.server.signature.keyinfo.ext" : "false",
    "use.refresh.tokens" : "true",
    "saml.signing.certificate" : "MIICpTCCAkugAwIBAgIUE8EgGPP5OJoBKk14BSpUx5AnW/0wCgYIKoZIzj0EAwIwgZIxCzAJBgNVBAYTAkJSMRcwFQYDVQQIEw5SaW8gZGUgSmFuZWlybzEXMBUGA1UEBxMOUmlvIGRlIEphbmVpcm8xFDASBgNVBAoTC0NsdXN0ZXIgSFBDMQswCQYDVQQLEwJDQTEuMCwGA1UEAxMlQ2xvdWRmbGFyZSBSb290IENlcnRpZmljYXRlIEF1dGhvcml0eTAeFw0yMjA4MDgwNDA3MDBaFw0zMjA4MDUwNDA3MDBaMH4xCzAJBgNVBAYTAkJSMRcwFQYDVQQIEw5SaW8gZGUgSmFuZWlybzEXMBUGA1UEBxMOUmlvIGRlIEphbmVpcm8xFDASBgNVBAoTC0NsdXN0ZXIgSFBDMRcwFQYDVQQLEw5DbG91ZGZsYXJlIFNTTDEOMAwGA1UEAxMFY2Zzc2wwWTATBgcqhkjOPQIBBggqhkjOPQMBBwNCAAQU/GNl15NedHjk6e3T+ExnVVPo9bRBq05q7FQKxNPSVbiwC6PZijc0zI0tvovGYfFE0w3v1J8fgpmMsijzSTmmo4GRMIGOMA4GA1UdDwEB/wQEAwIFoDAdBgNVHSUEFjAUBggrBgEFBQcDAQYIKwYBBQUHAwIwDAYDVR0TAQH/BAIwADAdBgNVHQ4EFgQUjQtfxjAWtz0ngXV4sIYJtQuVebEwHwYDVR0jBBgwFoAUEmgNfBT64HbI20iDALzZsXyTAqcwDwYDVR0RBAgwBocEfwAAATAKBggqhkjOPQQDAgNIADBFAiAK4akkV78dUN+2a+Zp+yBivumA/NxPULJ50f1kF5J6sQIhAJUvlx0IO6Tq+D4iSI+/uYy29CgQsg+yXwDEPcLJqtoC",
    "oidc.ciba.grant.enabled" : "false",
    "backchannel.logout.session.required" : "false",
    "saml.signature.algorithm" : "RSA_SHA256",
    "client_credentials.use_refresh_token" : "false",
    "require.pushed.authorization.requests" : "false",
    "saml.client.signature" : "false",
    "saml.allow.ecp.flow" : "false",
    "saml.assertion.signature" : "false",
    "id.token.as.detached.signature" : "false",
    "client.secret.creation.time" : "1667705384",
    "saml.encrypt" : "true",
    "saml_assertion_consumer_url_post" : "https://xdmod.exacta.eu.org/simplesaml/module.php/saml/sp/saml2-acs.php/default-sp",
    "saml.server.signature" : "true",
    "exclude.session.state.from.auth.response" : "false",
    "saml.artifact.binding.identifier" : "ZBVKrNNNSqJHVJm80zuYAOaKzJE=",
    "saml_single_logout_service_url_redirect" : "https://xdmod.exacta.eu.org/simplesaml/module.php/saml/sp/saml2-logout.php/default-sp",
    "saml.artifact.binding" : "false",
    "saml_force_name_id_format" : "true",
    "saml.encryption.certificate" : "MIICpTCCAkugAwIBAgIUE8EgGPP5OJoBKk14BSpUx5AnW/0wCgYIKoZIzj0EAwIwgZIxCzAJBgNVBAYTAkJSMRcwFQYDVQQIEw5SaW8gZGUgSmFuZWlybzEXMBUGA1UEBxMOUmlvIGRlIEphbmVpcm8xFDASBgNVBAoTC0NsdXN0ZXIgSFBDMQswCQYDVQQLEwJDQTEuMCwGA1UEAxMlQ2xvdWRmbGFyZSBSb290IENlcnRpZmljYXRlIEF1dGhvcml0eTAeFw0yMjA4MDgwNDA3MDBaFw0zMjA4MDUwNDA3MDBaMH4xCzAJBgNVBAYTAkJSMRcwFQYDVQQIEw5SaW8gZGUgSmFuZWlybzEXMBUGA1UEBxMOUmlvIGRlIEphbmVpcm8xFDASBgNVBAoTC0NsdXN0ZXIgSFBDMRcwFQYDVQQLEw5DbG91ZGZsYXJlIFNTTDEOMAwGA1UEAxMFY2Zzc2wwWTATBgcqhkjOPQIBBggqhkjOPQMBBwNCAAQU/GNl15NedHjk6e3T+ExnVVPo9bRBq05q7FQKxNPSVbiwC6PZijc0zI0tvovGYfFE0w3v1J8fgpmMsijzSTmmo4GRMIGOMA4GA1UdDwEB/wQEAwIFoDAdBgNVHSUEFjAUBggrBgEFBQcDAQYIKwYBBQUHAwIwDAYDVR0TAQH/BAIwADAdBgNVHQ4EFgQUjQtfxjAWtz0ngXV4sIYJtQuVebEwHwYDVR0jBBgwFoAUEmgNfBT64HbI20iDALzZsXyTAqcwDwYDVR0RBAgwBocEfwAAATAKBggqhkjOPQQDAgNIADBFAiAK4akkV78dUN+2a+Zp+yBivumA/NxPULJ50f1kF5J6sQIhAJUvlx0IO6Tq+D4iSI+/uYy29CgQsg+yXwDEPcLJqtoC",
    "tls.client.certificate.bound.access.tokens" : "false",
    "acr.loa.map" : "{}",
    "saml.authnstatement" : "true",
    "display.on.consent.screen" : "false",
    "saml_name_id_format" : "username",
    "token.response.type.bearer.lower-case" : "false",
    "saml_artifact_binding_url" : "https://xdmod.exacta.eu.org/simplesaml/module.php/saml/sp/saml2-acs.php/default-sp",
    "saml_signature_canonicalization_method" : "http://www.w3.org/2001/10/xml-exc-c14n#",
    "saml.onetimeuse.condition" : "false"
  },
  "authenticationFlowBindingOverrides" : { },
  "fullScopeAllowed" : true,
  "nodeReRegistrationTimeout" : -1,
  "protocolMappers" : [ {
    "id" : "b399bbf5-23f4-45e3-a736-b42a9f5f6222",
    "name" : "username",
    "protocol" : "saml",
    "protocolMapper" : "saml-user-property-mapper",
    "consentRequired" : false,
    "config" : {
      "attribute.nameformat" : "Unspecified",
      "user.attribute" : "username",
      "friendly.name" : "username",
      "attribute.name" : "username"
    }
  } ],
  "defaultClientScopes" : [ "osc-saml-clients", "role_list" ],
  "optionalClientScopes" : [ ],
  "access" : {
    "view" : true,
    "configure" : true,
    "manage" : true
  }
} ]

Some web interface images for clients and client scope:

image1028×914 69.3 KB

image1433×304 36.3 KB

image959×430 40.4 KB

image1330×388 32.3 KB

image1832×306 52 KB

image1057×450 24.4 KB

image1055×681 43 KB

image1043×449 24.7 KB

image1043×449 24.2 KB

image1043×449 25.6 KB

18

Can you log into XDMOD directly using Keycloak? The Client looks correct in Keycloak. The only thing odd I notice is you have a client scope for username assigned directly to the XDMOD Client in Keycloak but also seem to have that same scope defined in osc-saml-clients . I think you’d want to remove the one from XDMOD client since it doesn’t use the urn attribute name which I think makes a difference.

19

You’re right, I configured the username scoped directly in the XDMoD client in some configuration attempts. I just removed this.

[ {
  "id" : "08d22822-b1c7-4005-b23c-6748e17c263a",
  "clientId" : "xdmod.exacta.eu.org",
  "name" : "Open XDMoD",
  "rootUrl" : "",
  "adminUrl" : "",
  "surrogateAuthRequired" : false,
  "enabled" : true,
  "alwaysDisplayInConsole" : false,
  "clientAuthenticatorType" : "client-secret",
  "redirectUris" : [ "https://xdmod.exacta.eu.org/simplesaml/module.php/saml/sp/saml2-acs.php/default-sp" ],
  "webOrigins" : [ "https://xdmod.exacta.eu.org" ],
  "notBefore" : 0,
  "bearerOnly" : false,
  "consentRequired" : false,
  "standardFlowEnabled" : true,
  "implicitFlowEnabled" : false,
  "directAccessGrantsEnabled" : false,
  "serviceAccountsEnabled" : false,
  "publicClient" : false,
  "frontchannelLogout" : true,
  "protocol" : "saml",
  "attributes" : {
    "saml.multivalued.roles" : "false",
    "saml.force.post.binding" : "true",
    "frontchannel.logout.session.required" : "false",
    "oauth2.device.authorization.grant.enabled" : "false",
    "backchannel.logout.revoke.offline.tokens" : "false",
    "saml.server.signature.keyinfo.ext" : "false",
    "use.refresh.tokens" : "true",
    "saml.signing.certificate" : "MIICpTCCAkugAwIBAgIUE8EgGPP5OJoBKk14BSpUx5AnW/0wCgYIKoZIzj0EAwIwgZIxCzAJBgNVBAYTAkJSMRcwFQYDVQQIEw5SaW8gZGUgSmFuZWlybzEXMBUGA1UEBxMOUmlvIGRlIEphbmVpcm8xFDASBgNVBAoTC0NsdXN0ZXIgSFBDMQswCQYDVQQLEwJDQTEuMCwGA1UEAxMlQ2xvdWRmbGFyZSBSb290IENlcnRpZmljYXRlIEF1dGhvcml0eTAeFw0yMjA4MDgwNDA3MDBaFw0zMjA4MDUwNDA3MDBaMH4xCzAJBgNVBAYTAkJSMRcwFQYDVQQIEw5SaW8gZGUgSmFuZWlybzEXMBUGA1UEBxMOUmlvIGRlIEphbmVpcm8xFDASBgNVBAoTC0NsdXN0ZXIgSFBDMRcwFQYDVQQLEw5DbG91ZGZsYXJlIFNTTDEOMAwGA1UEAxMFY2Zzc2wwWTATBgcqhkjOPQIBBggqhkjOPQMBBwNCAAQU/GNl15NedHjk6e3T+ExnVVPo9bRBq05q7FQKxNPSVbiwC6PZijc0zI0tvovGYfFE0w3v1J8fgpmMsijzSTmmo4GRMIGOMA4GA1UdDwEB/wQEAwIFoDAdBgNVHSUEFjAUBggrBgEFBQcDAQYIKwYBBQUHAwIwDAYDVR0TAQH/BAIwADAdBgNVHQ4EFgQUjQtfxjAWtz0ngXV4sIYJtQuVebEwHwYDVR0jBBgwFoAUEmgNfBT64HbI20iDALzZsXyTAqcwDwYDVR0RBAgwBocEfwAAATAKBggqhkjOPQQDAgNIADBFAiAK4akkV78dUN+2a+Zp+yBivumA/NxPULJ50f1kF5J6sQIhAJUvlx0IO6Tq+D4iSI+/uYy29CgQsg+yXwDEPcLJqtoC",
    "oidc.ciba.grant.enabled" : "false",
    "backchannel.logout.session.required" : "false",
    "saml.signature.algorithm" : "RSA_SHA256",
    "client_credentials.use_refresh_token" : "false",
    "require.pushed.authorization.requests" : "false",
    "saml.client.signature" : "false",
    "saml.allow.ecp.flow" : "false",
    "saml.assertion.signature" : "false",
    "id.token.as.detached.signature" : "false",
    "client.secret.creation.time" : "1667705384",
    "saml.encrypt" : "true",
    "saml_assertion_consumer_url_post" : "https://xdmod.exacta.eu.org/simplesaml/module.php/saml/sp/saml2-acs.php/default-sp",
    "saml.server.signature" : "true",
    "exclude.session.state.from.auth.response" : "false",
    "saml.artifact.binding.identifier" : "ZBVKrNNNSqJHVJm80zuYAOaKzJE=",
    "saml_single_logout_service_url_redirect" : "https://xdmod.exacta.eu.org/simplesaml/module.php/saml/sp/saml2-logout.php/default-sp",
    "saml.artifact.binding" : "false",
    "saml_force_name_id_format" : "true",
    "saml.encryption.certificate" : "MIICpTCCAkugAwIBAgIUE8EgGPP5OJoBKk14BSpUx5AnW/0wCgYIKoZIzj0EAwIwgZIxCzAJBgNVBAYTAkJSMRcwFQYDVQQIEw5SaW8gZGUgSmFuZWlybzEXMBUGA1UEBxMOUmlvIGRlIEphbmVpcm8xFDASBgNVBAoTC0NsdXN0ZXIgSFBDMQswCQYDVQQLEwJDQTEuMCwGA1UEAxMlQ2xvdWRmbGFyZSBSb290IENlcnRpZmljYXRlIEF1dGhvcml0eTAeFw0yMjA4MDgwNDA3MDBaFw0zMjA4MDUwNDA3MDBaMH4xCzAJBgNVBAYTAkJSMRcwFQYDVQQIEw5SaW8gZGUgSmFuZWlybzEXMBUGA1UEBxMOUmlvIGRlIEphbmVpcm8xFDASBgNVBAoTC0NsdXN0ZXIgSFBDMRcwFQYDVQQLEw5DbG91ZGZsYXJlIFNTTDEOMAwGA1UEAxMFY2Zzc2wwWTATBgcqhkjOPQIBBggqhkjOPQMBBwNCAAQU/GNl15NedHjk6e3T+ExnVVPo9bRBq05q7FQKxNPSVbiwC6PZijc0zI0tvovGYfFE0w3v1J8fgpmMsijzSTmmo4GRMIGOMA4GA1UdDwEB/wQEAwIFoDAdBgNVHSUEFjAUBggrBgEFBQcDAQYIKwYBBQUHAwIwDAYDVR0TAQH/BAIwADAdBgNVHQ4EFgQUjQtfxjAWtz0ngXV4sIYJtQuVebEwHwYDVR0jBBgwFoAUEmgNfBT64HbI20iDALzZsXyTAqcwDwYDVR0RBAgwBocEfwAAATAKBggqhkjOPQQDAgNIADBFAiAK4akkV78dUN+2a+Zp+yBivumA/NxPULJ50f1kF5J6sQIhAJUvlx0IO6Tq+D4iSI+/uYy29CgQsg+yXwDEPcLJqtoC",
    "tls.client.certificate.bound.access.tokens" : "false",
    "acr.loa.map" : "{}",
    "saml.authnstatement" : "true",
    "display.on.consent.screen" : "false",
    "saml_name_id_format" : "username",
    "token.response.type.bearer.lower-case" : "false",
    "saml_artifact_binding_url" : "https://xdmod.exacta.eu.org/simplesaml/module.php/saml/sp/saml2-acs.php/default-sp",
    "saml_signature_canonicalization_method" : "http://www.w3.org/2001/10/xml-exc-c14n#",
    "saml.onetimeuse.condition" : "false"
  },
  "authenticationFlowBindingOverrides" : { },
  "fullScopeAllowed" : true,
  "nodeReRegistrationTimeout" : -1,
  "defaultClientScopes" : [ "osc-saml-clients", "role_list" ],
  "optionalClientScopes" : [ ],
  "access" : {
    "view" : true,
    "configure" : true,
    "manage" : true
  }
} ]

When I access xdmod url, after I create the /etc/xdmod/simplesamlphp/config/authsources.php file page returns blank

image1844×983 96.9 KB

Without the authsources.php file the page works, but not the login.

image1844×983 92.6 KB

20

I’m reviewing the settings.
in /etc/xdmod/simplesamlphp/config/config.php I enable 'enable.saml20-idp' => true
